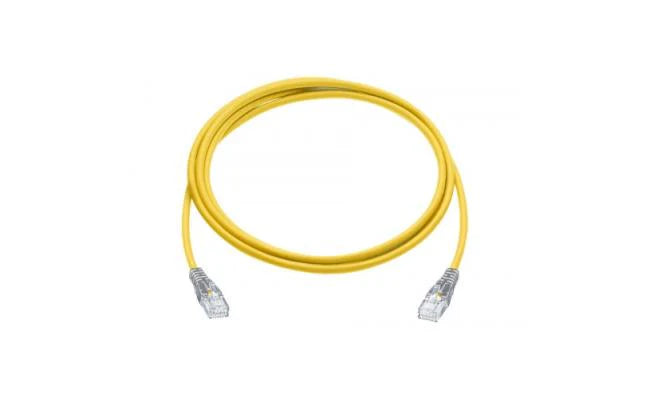

Cat6 UTP 24 AWG PVC Round Patch Cord - 0.5m

The D-Link NCB-C6UYELR1-05 is a 0.5-meter Cat6 unshielded twisted pair (UTP) patch cord designed for high-speed data transmission in networking environments. Featuring 24 AWG bare copper conductors and a durable PVC jacket, it ensures reliable performance for Ethernet applications.

Key Features:

• Category 6 UTP cable for high-speed data transmission

• 24 AWG bare copper conductors

• PVC jacket material compliant with UL94V-0

• Gold-plated RJ-45 connectors for optimal signal quality

• Suitable for 10BASE-T, 100BASE-TX, and 1000BASE-T networks

• Supports Power over Ethernet (PoE) applications

Specifications:

• Dimensions: Length: 0.5 meter

• Material: Bare copper conductors, PVC jacket

• Color Options: Yellow

• Power Requirements: Not applicable

• Other Specs:

  • Insulation Material: High-Density Polyethylene (HD-PE)

  • Heat Resistance: Up to 75°C

  • Connector Type: RJ-45 with 30µ” gold plating

  • Compliance: TIA/EIA-568B.2, ISO/IEC 11801, UL 444, UL 758, UL 1581, RoHS

  • Durability: 750 mating cycles

  • Cable-to-Plug Tensile Strength: Minimum 89N

  • Operating Temperature: -20°C to 75°C
